Product description

Specifications:

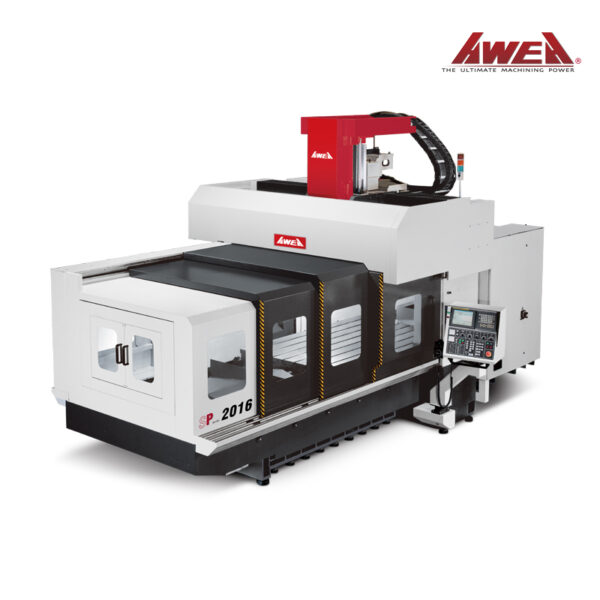

SP Series

• X-axis travel : 2,100 ~ 3,060 mm
• Y-axis travel : 1,600 mm
• Z-axis travel : 760 mm
• Distance between columns : 1,700 mm
• Table size ( X direction ) : 2,310 / 3,260 mm
• Table size ( Y direction ) : 1,500 mm
• Table load capacity : 8,000 / 10,000 kg
• Spindle speed : Gear 6,000 rpm ( opt. Direct drive 8,000 ~ 12,000 rpm )
• Spindle motor ( cont./ 30 min ) : 22 / 26 kW ( opt. 30 / 35 kW )
• Tool magazine : 32 ( opt. 24 / 40 / 60 /90 /120 ) T

FEATURES

• AWEA is pleased to introduce the bridge type vertical machining centers with advanced machining abilities and progressive technology skills.
• The bridge type machining centers combine strong spindle power and super rigid machine structure with high-quality automation equipment.
• AWEA bridge type machining centers are broadly applied in the automotive, precision mold, aerospace, and energy industries.
• The LP/LG series can be equipped with an automatic head changer and a vertical/horizontal ATC system, turning it into a 5-face machining center and providing more cutting flexibility to meet your demands.
