Product description

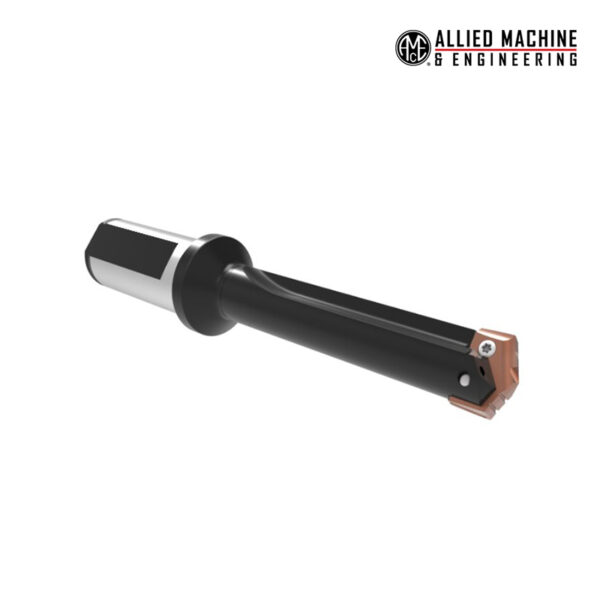

T-A GEN2

The T-A GEN2 drill inserts provide lower drilling forces, increased stability, a smoother breakout on through-hole and allow for improved chip formation. These inserts feature Allied’s exclusive AM300® and AM200® coatings for increased tool life.

Features

• Notch Point® geometry
• Helical margin
• Allied’s proprietary AM300® and AM200® coatings

Product Specifications

• Diameter Range – 0.374″ – 4.507″ (9.5mm – 114.48mm)
• Depth of Cut – 1xD up to 28xD
• Shank Options – Flange, Straight, Morse Taper
• Coating – AM300®, AM200®, TiN
• Insert Material – HSS, Super Cobalt, C1(K35), C2(K20)
• Holder – Original T-A®
• HoldersProduct Type – Replaceable Drill Insert
